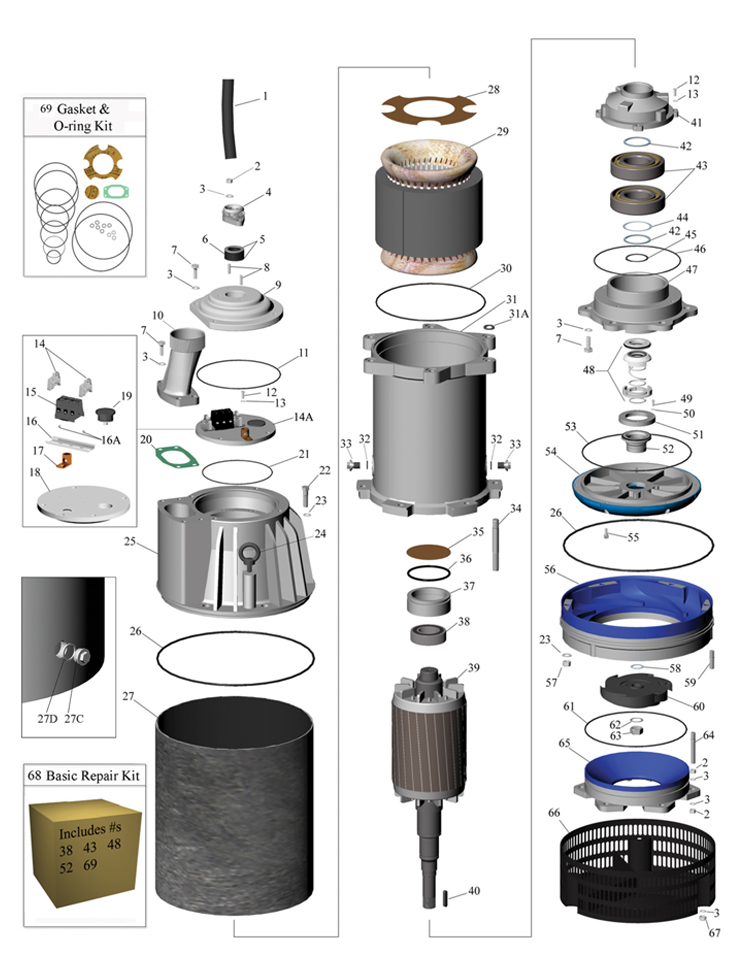

Apex Model: TD350HH 60HP Exploded View
Item # |
Item Description |
Details |
QTY |
OEM Part # |
|---|---|---|---|---|
| 60-1 | Power Cable | 4/3 TYPE G-GC-2KV-BLK | 50' | N/A |
| 60-2 | Nut | 12mm SS | 14 | 82 23 59 |
| 60-3 | Washer | 12mm SS | 31 | 82 35 20 |
| 60-4 | Cable Entry | Includes Clamps/Screws | 1 | 394 77 07 |
| 60-5 | Washer | 28mm To 30mm Cable Size | 2 | 82-40-80 |
| 60-6 | Grommet | 28mm To 30mm Cable Size | 1 | 84 35 55 |
| 60-7 | Bolt | 12mm x 35mm SS | 14 | 81 41 56 |
| 60-8 | Stud | 12mm x 45mm SS | 2 | 80 95 28 |
| 60-9 | Cover Junction | 1 | 336 87 00 | |
| 60-10-A | Discharge 4" Npt | Aluminum | 1 | 336 62 01 |
| 60-10-B | Discharge 4" Vic | Aluminum | ||
| 60-10-C | Discharge 4" BSP | Aluminum | 336 62 00 | |
| 60-11 | O-Ring | 189.3.0mm x 5.7mm B70 | 1 | 82 74 90 |
| 60-12 | Bolt | 8mm x 25mm SS | 9 | 81 41 06 |
| 60-13 | Washer | 8mm SS | 9 | 82 35 16 |
| 60-14 | End Stops | Polyamide 66 | 2 | N/A |
| 60-14-A | Terminal Board Assembly | Complete With Items: 14,15,16,16A,17,18,19 | 1 | 426 82 00 |
| 60-15 | Terminal Block | Polyamide 66 | 1 | N/A |
| 60-16 | Din-Rail SS | Din-Rail SS x 3" | 1 | N/A |
| 60-16-A | Screw | 4mm x 10mm SS | 2 | N/A |
| 60-17 | Ground Lug | Brass | 1 | N/A |
| 60-18 | Terminal Mount Plate | Aluminum | 1 | N/A |
| 60-19 | Wire Pull Through | Stator | 1 | N/A |
| 60-19-A | Wire Pull Through/ New Stlye | Optional | N/A | |
| 60-20 | Discharge Gasket | Fiber | 1 | 336 73 00 |
| 60-21 | O-Ring | 144.5mm x 3.0mm B70 | 1 | 82 74 82 |
| 60-22 | Bolt | 16mm x 60mm SS | 6 | 84 34 07 |
| 60-23 | Washer | 16mm SS | 12 | 82 35 23 |
| 60-24 | Eyebolt | 16mm Black Iron | 2 | 82 30 92 |
| 60-25 | Upper Bearing Housing | Aluminum | 1 | 336 51 00 |
| 60-26 | O-Ring | 399.5mm x 5.7mm B70 | 2 | 82 75 08 |
| 60-27-A | Outer Housing | Amalga/ No Inspection Ports | 1 | N/A |
| 60-27-B | Outer Housing | SS/Inspection Ports | 336 88 00 | |
| 60-27-C | Housing Plug | Durlon | 82 70 38 | |
| 60-27-D | Packing | Rubber/Steel | 82 73 73 | |
| 60-28 | Disc Protector | Fiber | 1 | 271 10 00 |
| 60-29 | Stator 460 Volt | 3/60/460 Volt | 1 | 336 66 38 |
| 60-30 | O-Ring | 299.3.0mm x 5.7mm B-70 | 1 | 82 75 03 |
| 60-31 | Stator Housing | Aluminum | 1 | 429 96 00 |
| 60-31-A | Packing | Rubber | 6 | 336 74 00 |
| 60-32 | O-Ring | 19.2mm x 3.0mm x B-70 | 3 | 82 73 90 |
| 60-33 | Inspection Screw | SS | 3 | 428 22 01 |
| 60-34 | Stud | 16mm x 130mm SS | 6 | 80 95 64 |
| 60-35 | Card Board Protector | Fiber | 1 | 336 75 00 |
| 60-36 | O-Ring | 89.1mm x 5.7mm B70 | 1 | 82 74 10 |
| 60-37 | Bearing Seat | Steel | 1 | 336 81 00 |
| 60-38 | Ball Bearing Upper | SKF 63082RDC3 | 1 | 83 34 44 |
| 60-39 | Rotor Assembly | SS Shaft | 1 | 336 70 02 |
| 60-40 | Impeller Key | 8mm x 7mm x 45mm SS | 1 | 80 75 85 |
| 60-41 | Bearing Cover | Aluminum | 1 | 336 29 02 |
| 60-42 | Support Washer | Steel | 2 | 82 44 19 |
| 60-43 | Lower Bearing | SKF 7311B-5GC3 | 2 | 84 23 17 |
| 60-44-A | Adjusting Washer Bearing | 0.2mm SS | 2 | 343 27 01 |
| 60-44-B | Adjusting Washer Bearing | 0.3mm SS | 2 | 343 27 00 |
| 60-45 | Retainer Ring | 50.8mm ID | 1 | 82 59 12 |
| 60-46 | O-Ring | 194.3mm x 5.7mm B70 | 1 | 82 74 92 |
| 60-47 | Lower Bearing Housing | Aluminum | 1 | 336 58 00 (713 37 00) |
| 60-48 | Upper Seal | TC/TC | 1 | 640 63 00 |
| 60-49 | Bolt | 6mm x 25mm SS | 4 | 81 40 85 |
| 60-50 | Washer | 6mm SS | 4 | 82 35 13 |
| 60-51 | Seal Clamp | Aluminum | 1 | 426 52 00 |
| 60-52 | Lower Seal | TC/TC | 1 | 586 70 00 |
| 60-53 | O-Ring | 299.3mm x 5.7mm B70 | 1 | 82 75 02 |
| 60-54 | Oil Housing | Polyurethane | 1 | 336 57 09 |
| 60-55 | Allen Head Bolt | 8mm x 20mm SS | 6 | 82 00 32 |
| 60-56 | Diffuser Ring | Polyurethane | 1 | 336 55 04 |
| 60-57 | Nut | 16mm x SS | 6 | 82 23 61 |
| 60-58-A | Adjusting Washer Impeller | 0.3mm SS | 2 | 298 62 00 |
| 60-58-B | Adjusting Washer Impeller | 1.5mm SS | 2 | 298 62 01 |
| 60-59 | Stud | 12mm x 45mm SS | 3 | 80 95 28 |
| 60-60-A | Impeller Hh (Cast Iron) | Code 234 60Hz | 1 | 475-3601 |
| 60-60-B | Impeller Hh SS 17-4 | Code 234 60Hz | 475 36 03 | |
| 60-60-C | Impeller Hh SS 17-4 | Code 233 50Hz | 414 38 00 | |
| 60-61 | O-Ring | 259.3mm x 5.7mm B70 | 1 | 82 74 99 |
| 60-62 | Washer | Impeller SS | 1 | 426 58 00 |
| 60-63 | Impeller Nut | 30mm SS | 1 | 426 47 00 |
| 60-64 | Stud | 12mm x 80mm SS | 6 | 84 46 56 |
| 60-65 | Lower Diffuser | Polyurethane | 1 | 380 04 05 |
| 60-66 | Strainer (Intake) | Steel (Powder Coated) | 1 | 338 80 00 |
| 60-67 | Nut/Ny-Lock | 12mm SS | 3 | 82 23 59 |
| 60-68 | Basic Repair Kit | Includes Items: 38,43,48,52 &69 | 1 | 601 90 06 |
| 60-69 | O-Ring Kit | Includes Items: 11,20,21,26,28,30,31A,32,35,36,46,53 & 61 | 1 | 723 54 00 |
