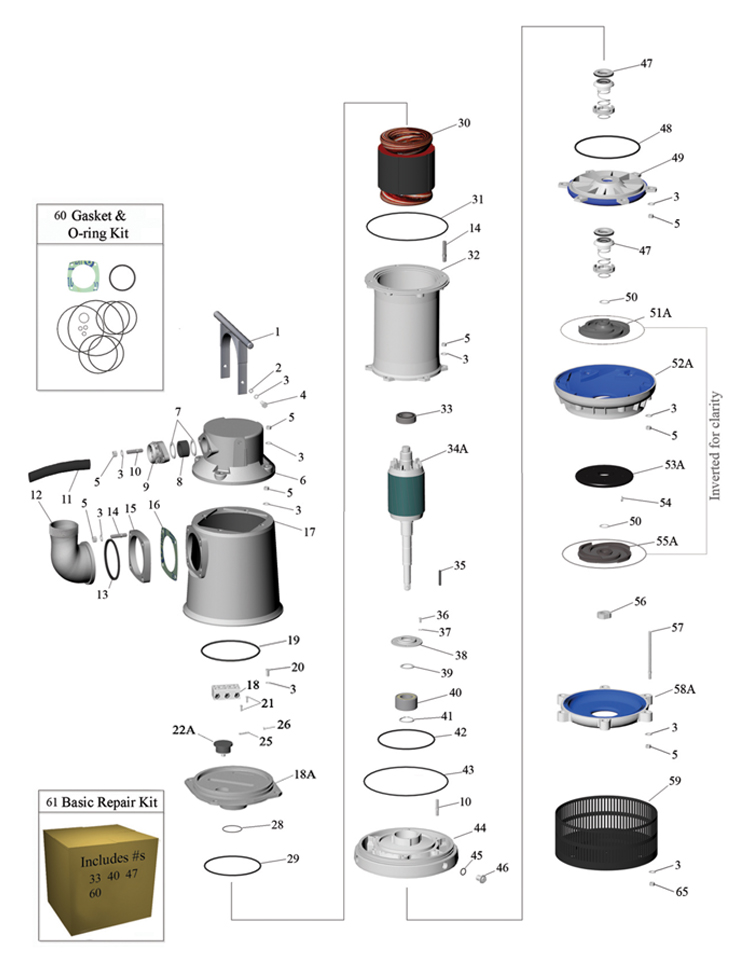

Apex Model: SD250HH 13HP Exploded View
Item # |
Item Description |
Details |
QTY |
OEM Part # |
|---|---|---|---|---|
| 13-1 | Handle | SS | 1 | 407 61 00 |
| 13-2 | Bushing | Flanged SS | 2 | 337 14 01 |
| 13-3 | Washer | 12mm SS | 52 | 82 35 21 |
| 3-A | Washer | 10mm SS | 4 | |
| 13-4 | Bolt | 1/2" x 30mm SS | 2 | 81 52 17 |
| 13-5 | Nut | 1/2" SS | 50 | 82 24 53 |
| 13-6 | Junction Cover | Aluminum | 1 | 558 83 00 |
| 13-7 | Washer | 22mm To 24mm Cable | 2 | 82 40 77 |
| 13-8 | Grommet | 22mm To 24mm Cable | 1 | 84 35 52 |
| 13-9 | Cable Entry Assembly | Includes Clamps/Screws | 1 | 394 77 07 |
| 13-10 | Stud | 1/2" x 50mm SS | 8 | 81 02 14 |
| 13-11-A | Power Cable 50' | D3 8/4 SOOW UL/CSA BLK LL | 1 | |
| 13-11-B | Power Cable 50' | 8/3 WAG Type G-GC | ||
| 13-12-A | Discharge 4" NPT | Swivel/Aluminum | 1 | 275-14-00 |
| 13-12-B | Discharge 4" Vic | Swivel/Aluminum | 1 | |
| 13-13 | Seal Ring | Rubber | 1 | 275 17 00 |
| 13-14-A | Stud | 1/2" x 60mm SS | 4 | 81 02 16 |
| 14-B | Stud | 1/2" x 70mm SS | 4 | |
| 13-15 | Flange Ring | Aluminum | 1 | 275 25 00 |
| 13-16 | Nozzle Gasket | Fiber | 1 | 275 48 00 |
| 13-17 | Outer Housing Discharge | Aluminum | 1 | 275 01 00 |
| 13-18 | Terminal Block | Ceramic | N/A | |
| 13-18-A | Terminal Block Assembly | Complete With Items: 18,21,22,24,25,26 &27 | 1 | |
| 13-19 | O-Ring | 184.3mm x 5.7mm B-70 | 1 | 82 74 90 |
| 13-20 | Bolt | 3/8" x 9.5mm SS | 4 | 81 51 96 |
| 13-21 | Screw | 10/32 x 1/2" SS | 2 | N/A |
| 13-22-A | Wire Pull Through | Stator | 1 | 441 46 00 |
| 13-35 | Ground Plate | SS | 1 | 279 29 00 |
| 13-26 | Screw | 10/32 x 1/2" SS | 2 | N/A |
| 13-27 | Upper Bearing Housing | Aluminum | 1 | 320 50 00 |
| 13-28 | O-Ring | 52.5mm x 3mm B-70 | 1 | 82 77 95 |
| 13-29 | O-Ring | 194.3mm x 5.7mm B-70 | 1 | 82 74 92 |
| 13-30 | Stator | 3 ph/60hz/460 v | 1 | 623-9401 |
| 13-31 | O-Ring | 259.3mm x 5.7mm B-70 | 1 | 82 74 99 |
| 13-32 | Stator Housing | Aluminum | 1 | 275 02 01 |
| 13-33 | Upper Bearing | SKF 6205/2RD/C3 | 1 | 83 32 54 |
| 13-34 | Rotor/Complete | SS Shaft | 1 | 275 26 04 |
| 13-35 | Impeller Key | 6mm x6mm x 50mm SS | 1 | 80 70 58 |
| 13-36 | Bolt | 1/4" x 12mm SS | 4 | 81 51 52 |
| 13-37 | Washer/Spring | 1/4" SS | 4 | 82 48 59 |
| 13-38 | Bearing Cover | Aluminum | 1 | 275 12 00 |
| 30-39 | Support Washer | 35mm x 45mm SS | 1 | 82 44 13 |
| 30-40 | Lower Bearing | SKF 5307/ZZ/C3 | 1 | 83 36 92 |
| 30-41 | Retaining Ring | 32mm ID SS | 1 | 82 59 03 |
| 13-42 | O-Ring | 199.3mm x 5.7mm B-70 | 1 | 82 74 93 |
| 13-43 | O-Ring | 319.2mm x 5.7mm B-70 | 1 | 82 75 04 |
| 13-44 | Lower Bearing Housing | Aluminum | 1 | 275 03 00 |
| 13-45 | O-Ring | 19.3mm x 3mm B-70 | 3 | 82 73 90 |
| 13-46 | Inspection Screw | SS | 3 | 281 98 00 |
| 13-47 | Upper/Lower Seal | TC/TC | 2 | 501 38 06 |
| 13-48 | O-Ring | 219.3mm x 5.7mm B-70 | 1 | 82 74 95 |
| 13-49 | Oil Housing | Polyurethane | 1 | 493 83 01 |
| 13-50-A | Adjustment Washer Impeller | 0.3mm SS | 2 | 247 00 00 |
| 13-50-B | Adjustment Washer Impeller | 1.5mm SS | 2 | 247 00 01 |
| 13-51-A | Upper Impeller Cast Iron | Code 234 60Hz | 1 | 383 21 05 |
| 13-15-B | Upper Impeller SS 17-4 | Code 234 60Hz | 520 29 01 | |
| 13-15-C | Upper Impeller SS 17-4 | Code 234 50Hz | 520 29 00 | |
| 13-52-A | Diffuser Ring Hh | Polyurethane | 1 | 288 59 01 |
| 13-53-D | Diffuser Disk Hh | Polyurethane | 1 | 277 63 02 |
| 13-54 | Socket Head Cap Screw | 1/4 NC x 12mm SS | 5 | 82 10 26 |
| 13-55-A | Lower Impeller Hh Cast Iron | Code 234 60Hz | 1 | 383 22 05 |
| 13-55-B | Lower Impeller Hh SS 17-4 | Code 234 60Hz SS | 520 28 01 | |
| 13-55-C | Lower Impeller Hh SS 17-4 | Code 234 50Hz SS | 520 28 00 | |
| 13-56 | Impeller nut | SS | 1 | 19 220 02 |
| 13-57 | Stud | 1/2" NC x 150mm SS | 6 | 275 39 00 |
| 13-58-A | Lower Diffuser Hh | Polyurethane | 1 | 277 61 01 |
| 13-59 | Strainer (Intake) | Steel Powder Coated | 1 | 345 20 00 |
| 13-60 | O-Ring Kit | Includes Items: 13,16,19,28,29,31,42,43,45 & 48 | 80 32 54 | |
| 13-61 | Basic Repair Kit | Includes Items: 33,40,47 & 60 | 601 90 04 |
