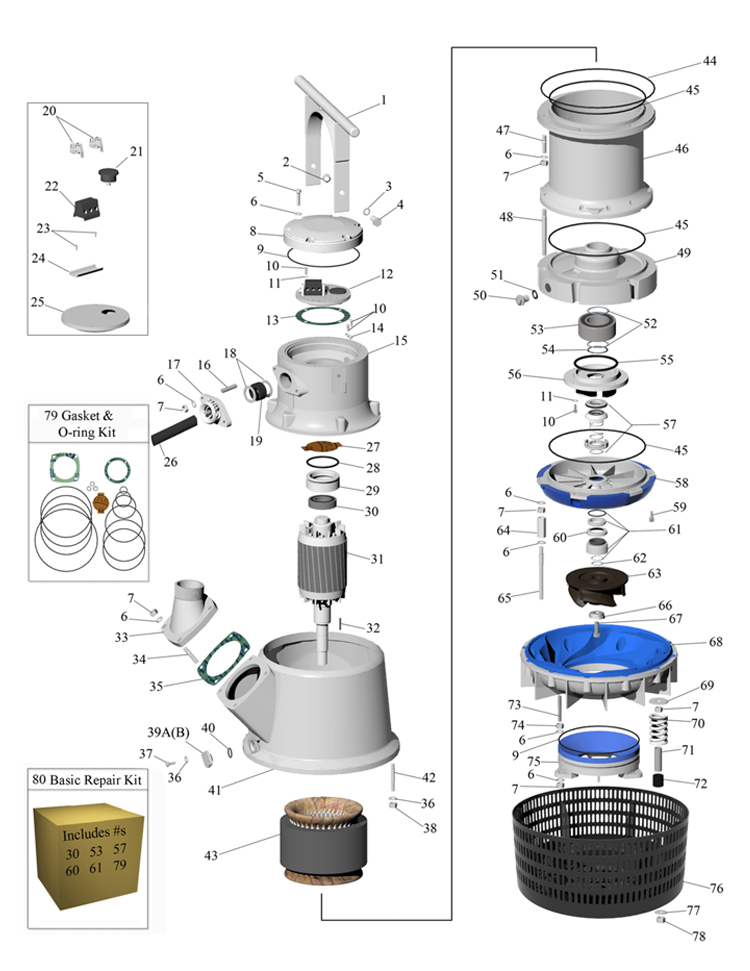

Apex Model: SD150HV 30HP Exploded View
<<Back

Item #

Item Description

Details

QTY

OEM Part #
30-1 Handle SS 1 N/A
30-2 Bushing Flanged Bushing SS 2 306 00 01
30-3 Washer 16mm SS 2 82 35 23
30-4 Bolt 16mm x 35mm SS 2 84 34 02
30-5 Bolt 12mm x 60mm SS 6 N/A
30-6 Washer 12mm SS 36 82 35 21
30-7 Nut 12mm SS 27 82 23 59
30-8 Junction Cover Aluminum 1 298 75 00
30-9 O-Ring 219.9mm x 5.7mm B-70 2 82 74 95
30-10 Bolt 8mm x 25mm SS 10 81 41 04
30-11 Washer 8mm SS 10 82 35 16
30-12 Terminal Board Assembly Complete With Items: 20,21,22,21,24,25 1 426 84 00
30-13 Gasket Fiber 1 305 97 02
30-14 Ground strip SS 1 303 09 00
30-15 Upper Bearing Carrier Aluminum 1 298 51 00
30-16 Stud 12mm x45mm S 2 809528
30-17 Cable Entry Includes Clamps/Screws 1 394 77 07
30-18 Washer 28mm To 30mm Cable 2 82 40 80
30-19 Grommet 28mm To 30mm Cable 1 84 35 55
30-20 End Stop Polyamide 66 2 N/A
30-21 Wire Pull Through Stator 1 N/A
30-21A Wire Pull Through/ New Style Optional   N/A
30-22 Terminal Block Polyamide 66 1 N/A
30-23 Screw 4mm x 10mm SS 2 N/A
30-24 Din-Rail Din-Rail SS x 3" 1 N/A
30-25 Terminal Mount Plate Aluminum 1 N/A
30-26 Power Cable 4/3/GGC 50FT 1 N/A
30-27 Fiber Protector Fiber 1 342 23 00
30-28 O-Ring 79mm x 5.7mm B-70 1 82 74 08
30-29 Bearing Holder Steel 1 298 76 00
30-30 Upper Bearing 6208/@RD/C3 1 83 32 48
30-31 Rotor/Complete SS Shaft 1 499 29 00
30-32 Impeller Key 8mm x 7mm x 40mm SS 1 80 70 62
30-33-C Discharge 6" NPT  Fixed Aluminum 1 298 94 00
30-33-D Discharge 6" Vic  Fixed Aluminum
30-34 Stud 12mm x 55mm SS 4 80 95 30
30-35 Gasket Fiber 1 275 48 00
30-36 Washer 10mm SS 18 82 35 18
30-37 Bolt 10mm x 25mm SS 6 N/A
30-38 Nut 10mm x SS 12 82 23 58
30-39-A Inspection Cover, Oil Aluminum 2 N/A
30-39-B Inspection Cover, Stator Aluminum 1 N/A
30-40 O-Ring 32.5mm x 5.7 B-70 3 N/A
30-41 Outer Housing Discharge Aluminum 1 298 49 01
30-42 Stud 10mm x 75mm SS 12 80 95 13
30-43 Stator 3/60/460 Volt 1 298 85 38
30-44 O-Ring 399.3mm x 5.7mm B-70 1 82 75 05
30-45 O-Ring 279mm x 5.7mm B-70 3 82 75 01
30-46 Stator Housing Aluminum 1 298 50 00
30-47 Stud 12mm x 50mm SS 6 80 95 29
30-48 Stud 12mm x 120mm SS 6 80 95 43
30-49 Lower Bearing Cover Aluminum 1 499 22 00
30-50 Inspection Screw SS 3 428 22 00
30-51 O-Ring 19.2mm x 3.0mm B-70 3 82 73 90
30-52 Support Washer Steel 2 82 44 19
30-53 Lower Bearing 5311 A-2RS1/C3 1 83 37 01
30-54 Retaining Ring 50.8mm ID Steel 1 82 59 12
30-55 O-Ring 119.5mm x 5.7mm B-70 1 82 74 16
30-56 Bearing Cover Aluminum 1 499 23 00
30-57 Upper Seal TC/TC 1 515 67 01
30-58 Oil Housing Cover Polyurethane 1 499 27 01
30-59 Screw/Socket Head 10mm x 25mm SS 3 82 00 51
30-60 Seal Protector Rubber/SS 1 578 12 00
30-61 Lower Seal TC/TC 1 517 73 01
30-62-A Adjusting Washer Impeller 0.03mm SS 2 298 62 00
30-62-B Adjusting Washer Impeller 1.5mm SS 2 298 62 01
30-63-D Impeller Hv 17-4 Code 232 60hz   520 27 00
30-63-E Impeller Hv 17-4 Code 232 50hz   298 65 00
30-64 Nut 12mm SS Coupling 6 305 89 00
30-65 Stud 12mm x 140mm SS 6 298 99 00
30-66 Nut/Puller (Impeller)  SS   343 53 00
30-67 Bolt Socket/Head 12mm x 40mm SS 1 81 42 88
30-68-B Diffuser Ring Hv Polyurethane 1 298 57 01
30-69 Washer 12mm x 50mm SS 6 305 90 00
30-70 Spring SS 6 305 88 00
30-71 Distance Tube SS 6 305 86 00
30-72 Rubber Sleeve Rubber 6 305 87 00
30-73 Stud 12mm x 80mm SS 3 84 46 53
30-74 Nut 12mm 1/2 Nut SS 3 82 25 60
30-75-B Lower Diffuser Hv Polyurethane 1 298 59 04
30-76 Strainer (Intake) Steel Powder Coated 1 298 70 02
30-77 Washer 12mm x 36mm SS 6 82 35 21
30-78 Nut 12mm x Fiber Lock SS 6 82 25 60
30-79 Gasket & O-Ring Kit Includes Items: 9,13,27,28,35,44,45 & 55 1 82 96 73
30-80 Basic Repair Kit Includes Items:                           30, 53, 57,60,61 & 79 1 601 90 05
